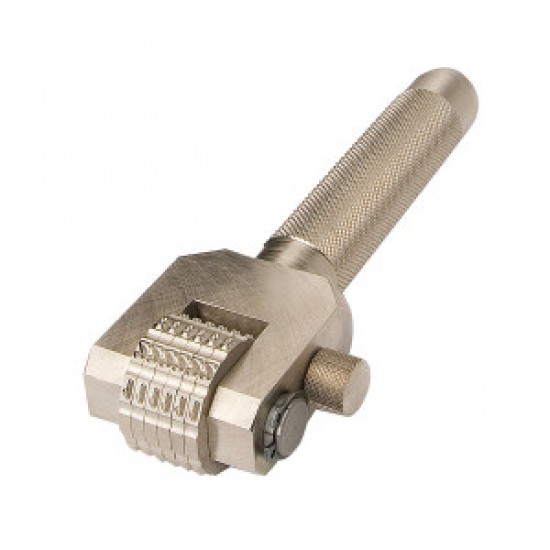

Compact Marker
Compact Marker
- Model: KOMPAK
COMPACT MARKER
- Space-saving compact design
- Striking handle can be replaced by shank
- Display of settings by tell-tale characters in the wheel grooves, indicated by arrows
- All components internally standardized and separately available
- Manufactured from special high-performance tool steel
- Type of characters acc. to DIN 1451
- Hardness at the engraving: 58–61 HRC
- Nickel-plated version (rust-protected)
Size of character | Number of Wheels | Wheel Width | Length of Impression |
---|---|---|---|
2 mm | 6 | 2 mm | 11.0 mm |
3 mm | 6 | 3 mm | 16.5 mm |
4 mm | 6 | 3 mm | 17.0 mm |
5 mm | 6 | 4 mm | 23.0 mm |
6 mm | 6 | 4 mm | 23.0 mm |
